Power Flip Flop (CB6769E)

Details
Written by: Newton C. Braga

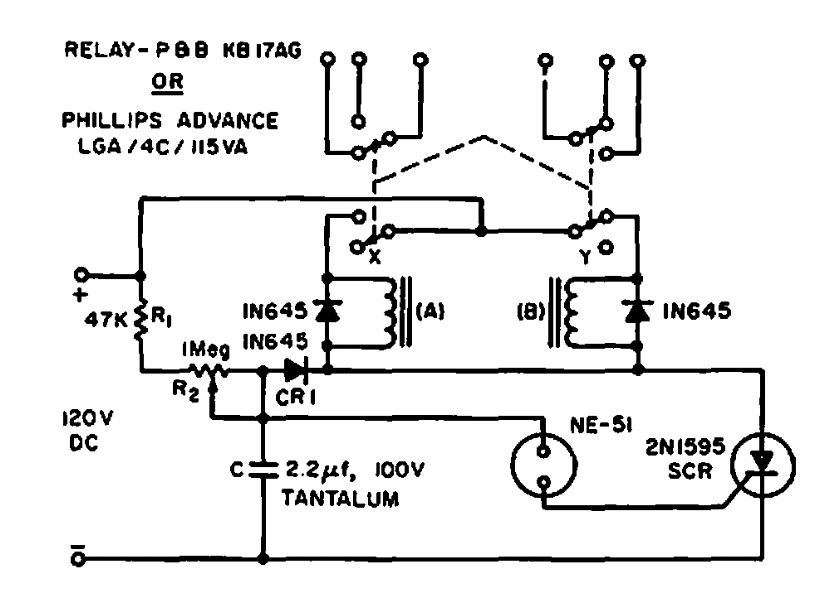

     This circuit was found in an Electronic Design. It makes use of a relaxation oscillator to trigger an SCR and two relays. The circuit operates at frequencies of 12 to 180 cycles per minute.




| Clique na imagem para ampliar |
