5 Condition Indicator (CB6677E)

Details
Written by: Newton C. Braga

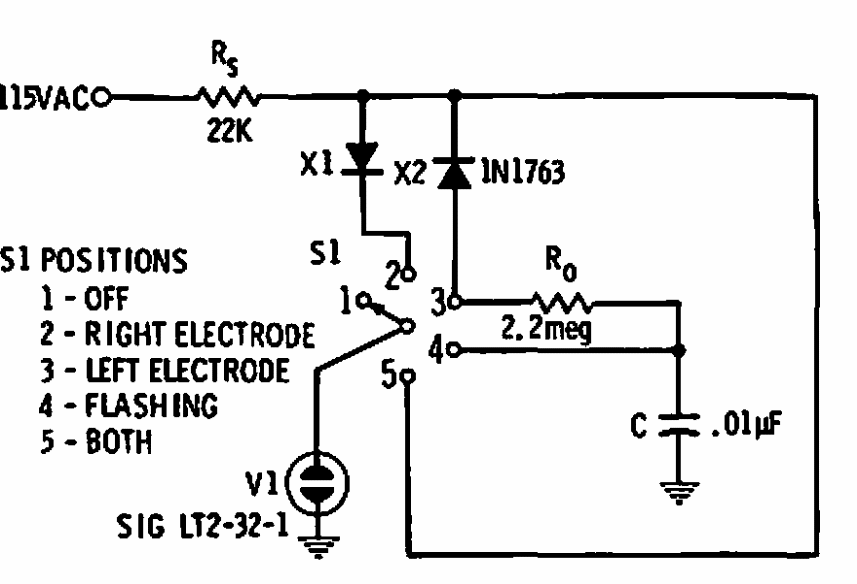

     Found in an old publication about neon lamps this circuit works directly connected to the power grid, serving as an indicator for various situations. Ordinary neon lamps can be used.




| Clique na imagem para ampliar |
