Tube Power Source (CB6743E)

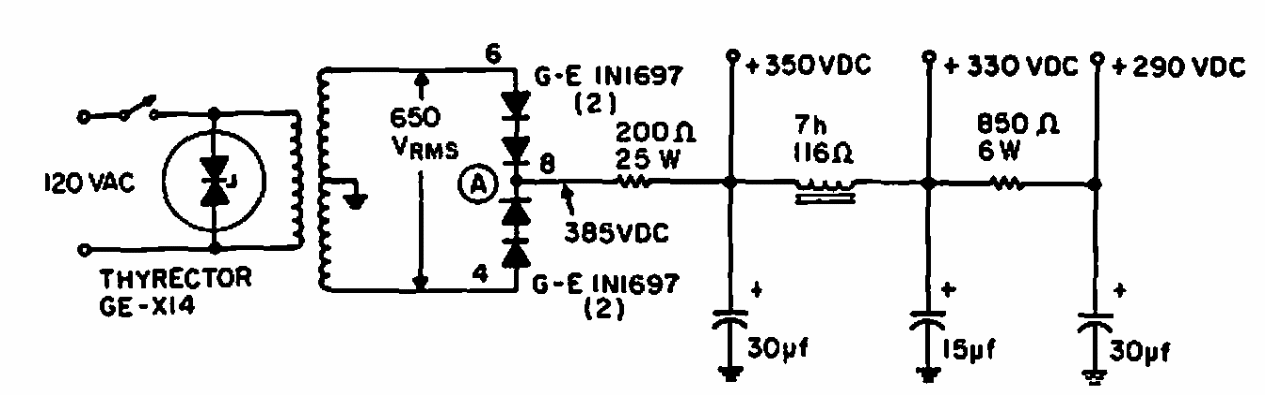

This circuit is from a high voltage tube source. It does not include the filament voltage that must be supplied by a separate transformer.

| Clique na imagem para ampliar |
