Neon Flasher (CB7089E)

Details
Written by: Newton C. Braga

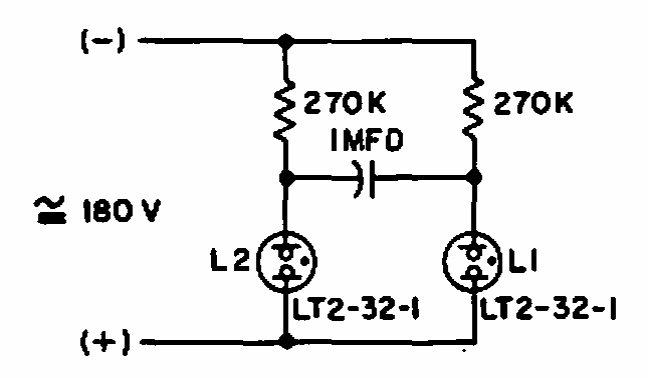

     This simple neon alternating flashing circuit was found in an old American publication. The current is very low, but the supply must be made with at least 100 V.




| Clique na imagem para ampliar |
