DC to DC 3 A converter (CB7323E)

Details
Written by: Newton C. Braga



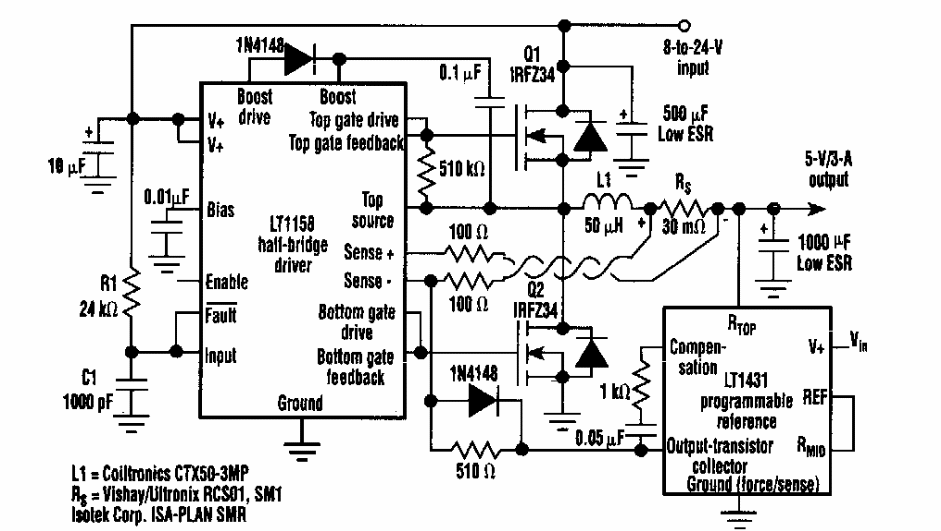

     Found in an Electronic Design from the 90s, this circuit does not need sinks for its components. The circuit converts 8 to 12 V input into 5 V x 3 A output.
