High Impedance 2 W Amplifier (CB6163E)

Details
Written by: Newton C. Braga

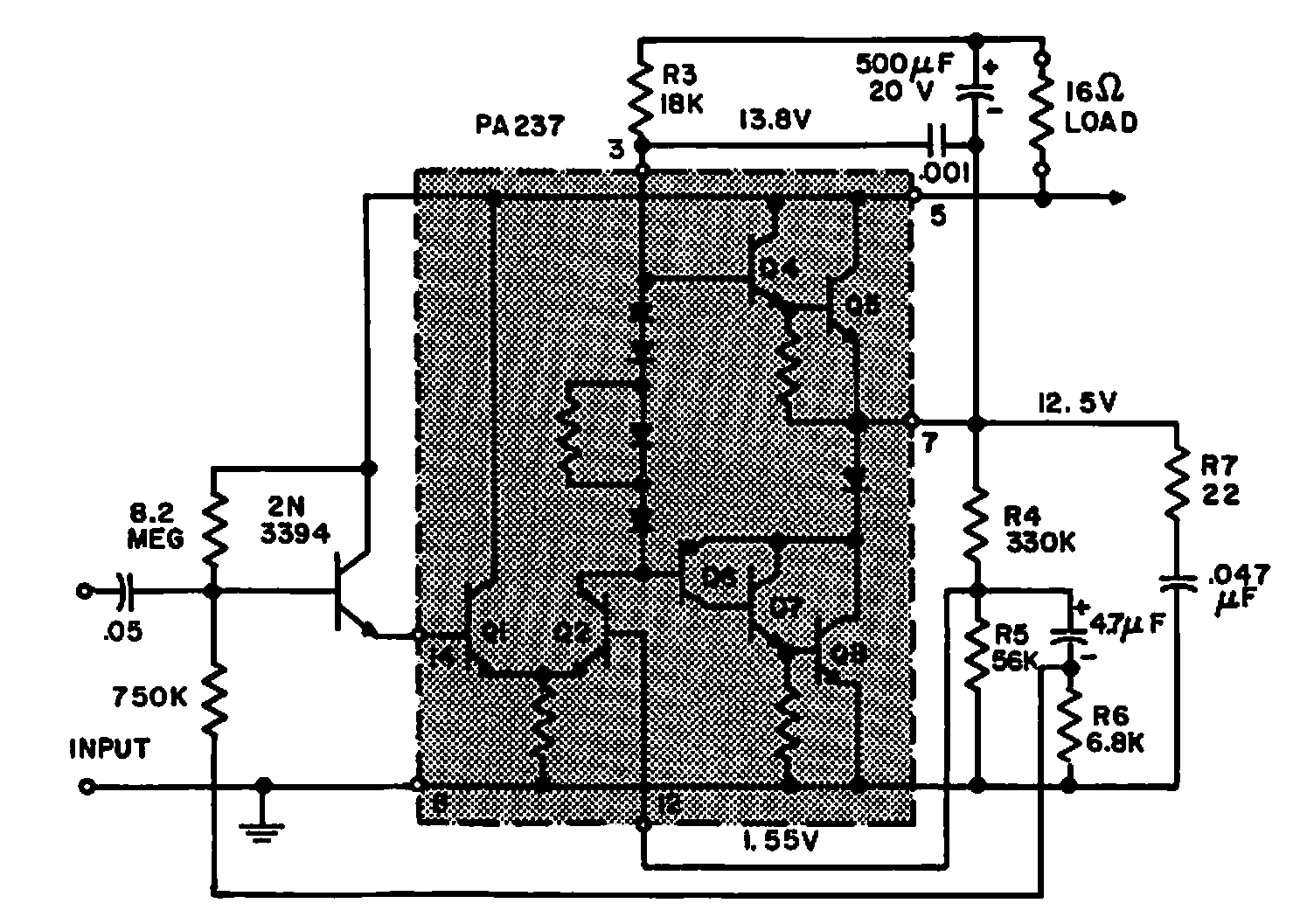

     This circuit was found in a 1968 General Electric documentation. It has an input impedance of 2 M ohms and excites a load of 16 ohms. The integrated circuit of the time is the PA237.




| Clique na imagem para ampliar |
