Optical logic gate (CB7257E)

Details
Written by: Newton C. Braga

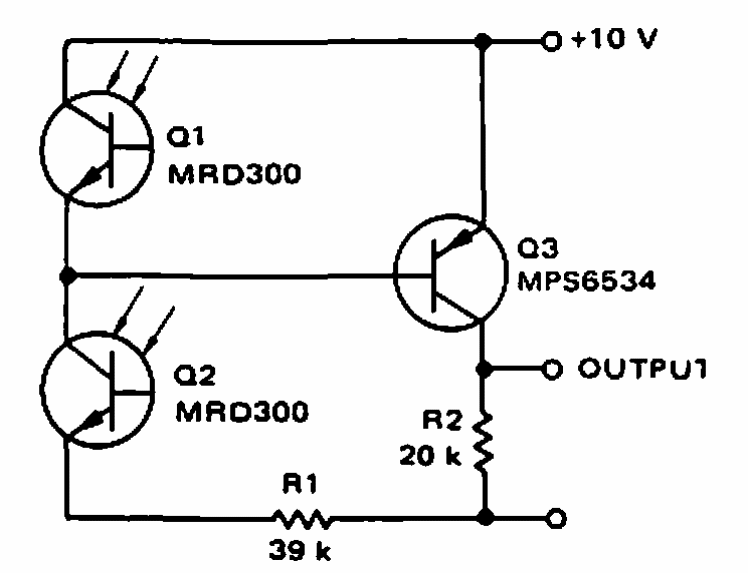

    This circuit is from Motorola documentation, but can be implemented with virtually any phototransistor and any general-purpose transistor. The supply voltage can also be changed.




| Clique na imagem para ampliar |
