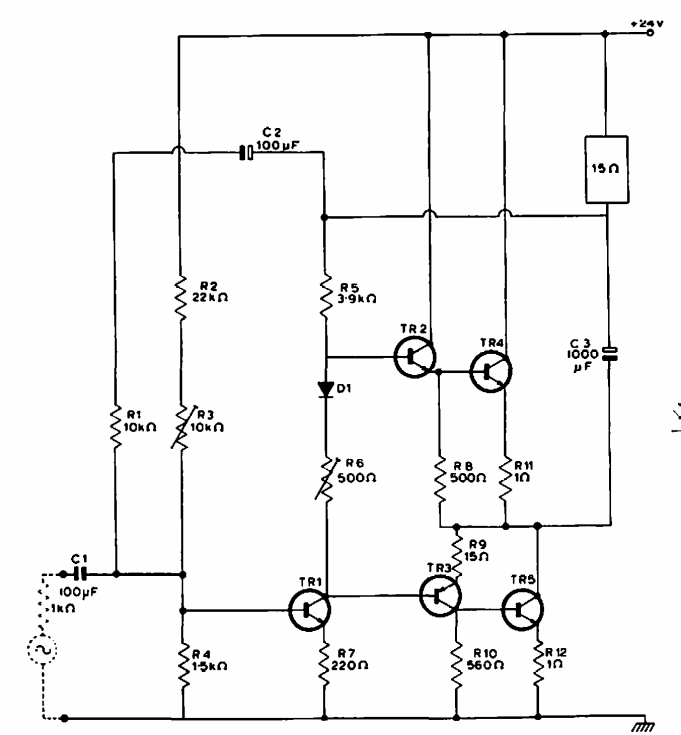

3 W Amplifier (CB6201E)

Details
Written by: Newton C. Braga



    This circuit was obtained from Dutch documentation from 1967. It uses transistors of the time which can be the BFY50 and 51 for the output and the BC series for the others.
