Binary Divider (CB6609E)

Details
Written by: Newton C. Braga

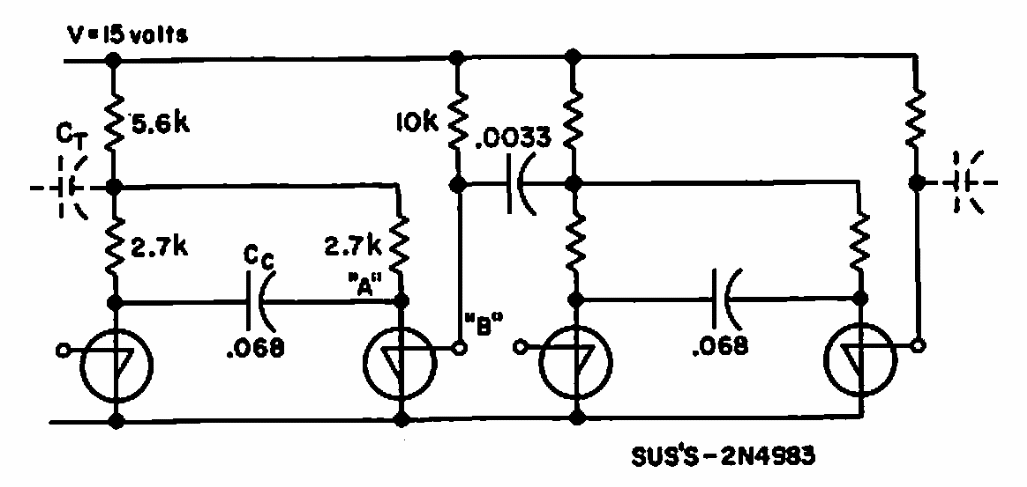

     This circuit was obtained from a 1967 General Electric documentation. The circuit makes use of unusual SUS today. Other steps can be added to the circuit.
