1 kHz oscillator (CB6909E)

Details
Written by: Newton C. Braga

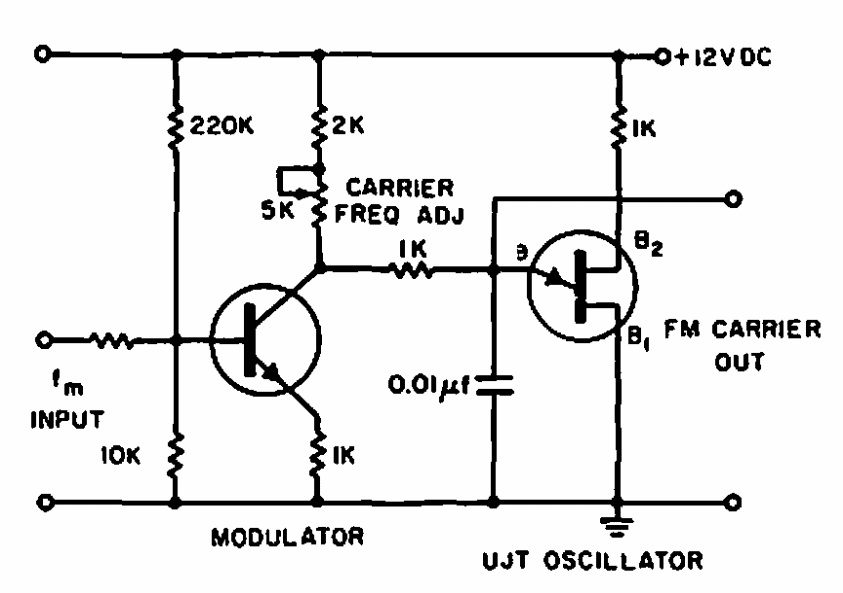

     This oscillator produces a modulated signal using a unijunction transistor. We found it in an American documentation from 1965. The circuit modulates in frequency the generated signal.
