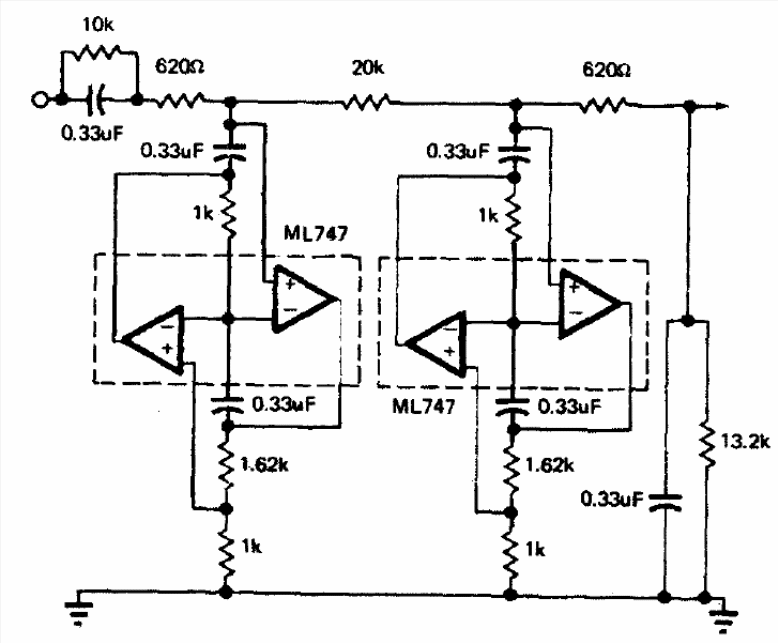

We found this circuit in a 1973 publication. The circuit lets frequencies below 480 kHz pass through with an output impedance of 1k. The circuit can be implemented with current operational.
| Clique na imagem para ampliar |
480 kHz Low Pass Filter (CB13564E)
- Details
- Written by: Newton C. Braga
