This circuit is from a 1976l filter cookbook. The circuit has a factor Q = 3, and must be supplied with a symmetrical source of 6 to 12 V. Other frequencies can be obtained by changing the components.
| Clique na imagem para ampliar |

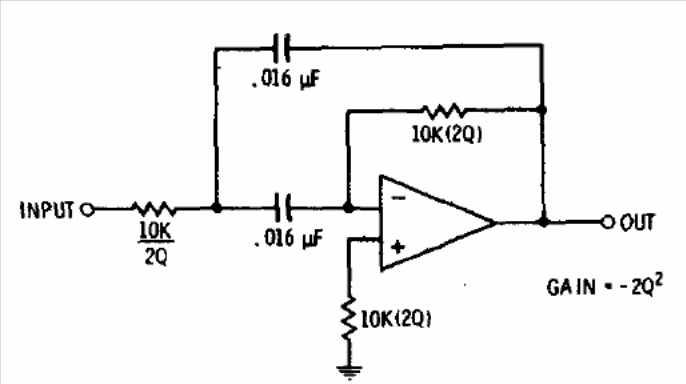

1 kHz Bandpass Filter with the 741 (CB13570E)
- Details
- Written by: Newton C. Braga
