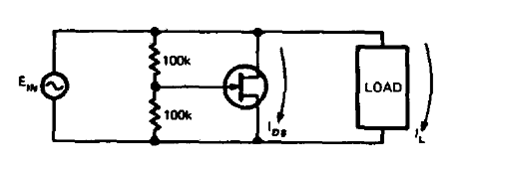

This circuit was obtained in a 1974 documentation. It shows how to use a JFET as a low intensity current drain to improve the performance of thyristor trigger circuits. The drained current depends on the JFET.
JFET Current Drain (CB13422E)
- Details
- Written by: Newton C. Braga
