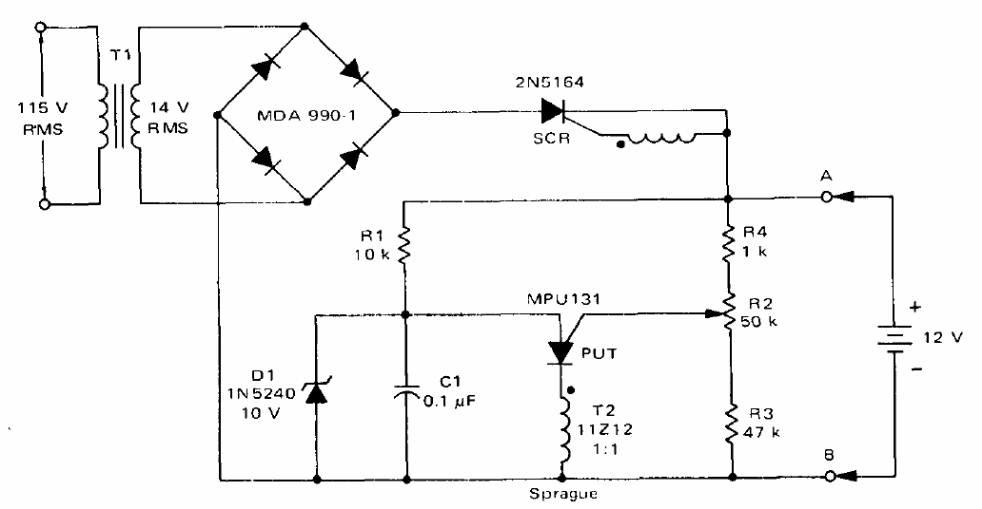

This circuit is from a 1974 technical documentation. The publication deals with applications of programmable unijunction transistors (PUT). Types equivalent to the one indicated can be used and the SCR can be one of the TIC series for currents of at least 8 A. The current of the transformer is 8 A or more and the transformer T2 is of the pulse type with a turn ratio of 1: 1.
