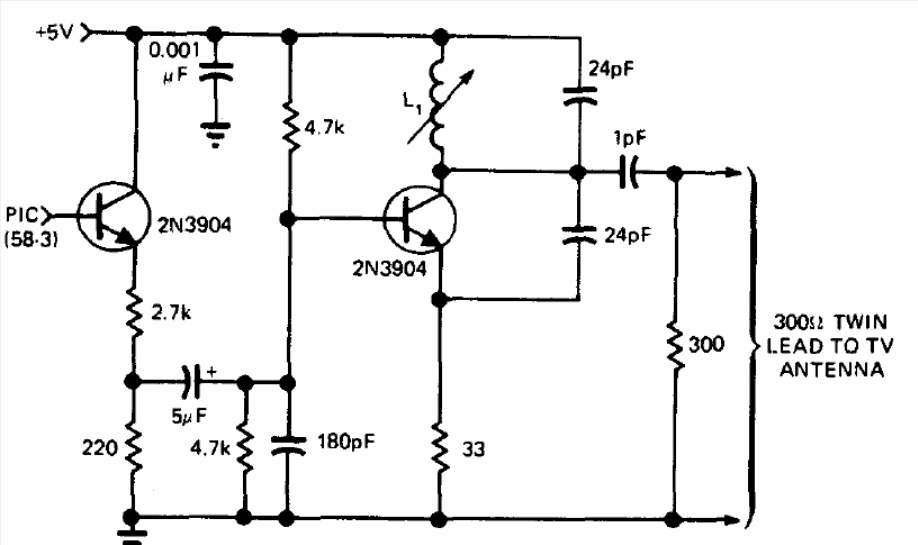

This circuit can be used as a modulator for TV games. The circuit is from a 1975 publication. The L coil is formed by 4 turns of wire 18 in the form of 0.3 to 0.5 cm with an adjustable core. The transistors can be 2N2222. The power can also be made with 6 V.
