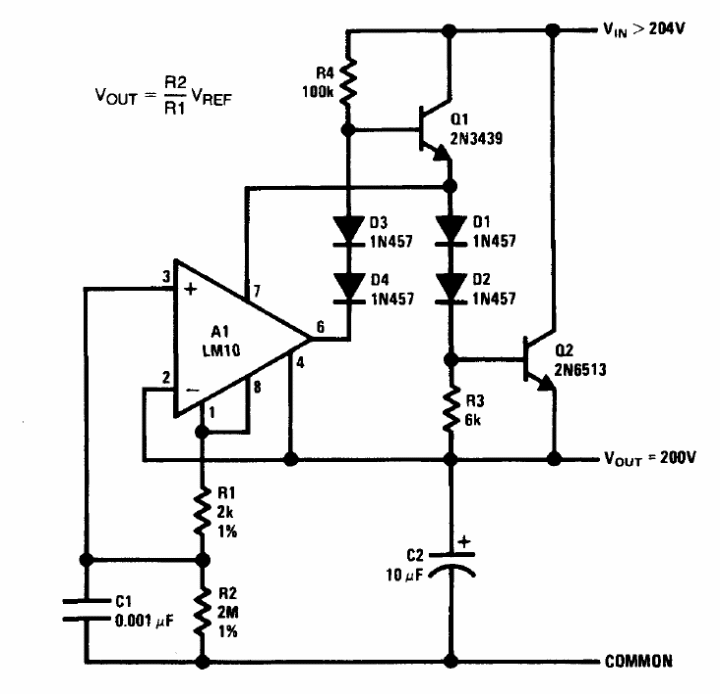

The circuit shown was found in the National Semiconductor's Linear Applications Handbook of 1994. The integrated circuit and transistors are not common today, but the circuit can be adapted to use modern equivalent components.
