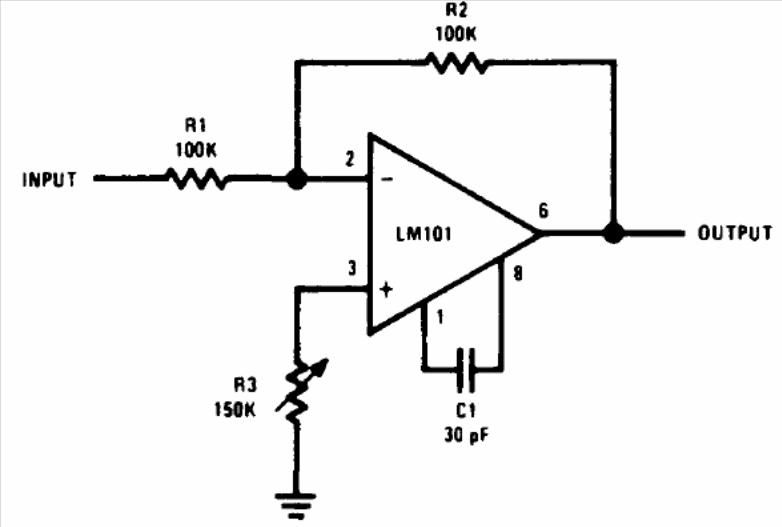

This circuit is from the 1995 National Semiuconductor Linear Application Handbook. The technique applied to an LM101 applies to other operational. The circuit must be powered by a symmetrical source and the R2 / R1 ratio determines the gain.
