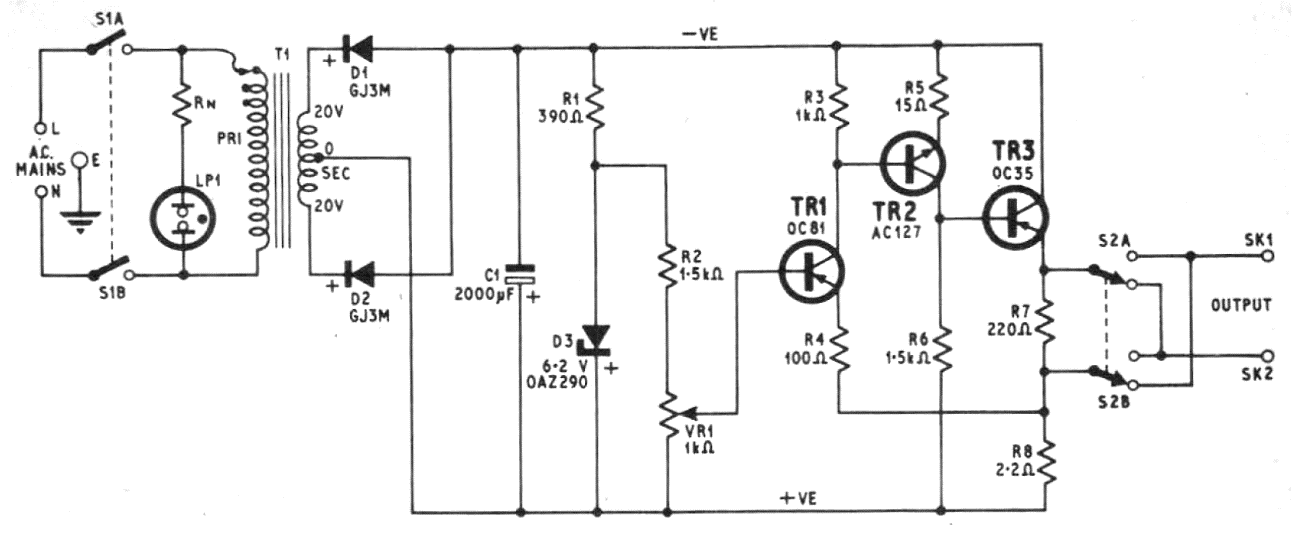

The circuit is from a 1966 English magazine, but it can be assembled with more modern transistors such as BC558 for TR1, BD136 for TR2 and 2N3055 for TR3. The other components are common, and the diodes can be 1N5402 for a 20 V x 2 A transformer.
