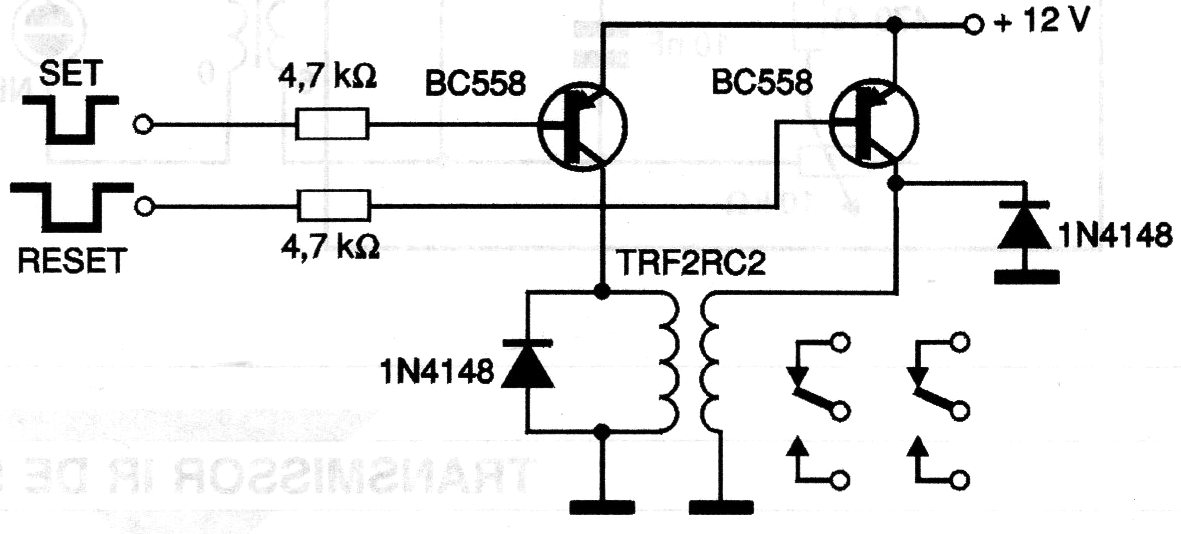

This circuit is intended to drive bistable relays and can be used as a shield for microcontrollers. The circuit, in this case, activates a 12 V relay with a current of the order of 100 mA. Other types of relays can be used with the necessary changes.
