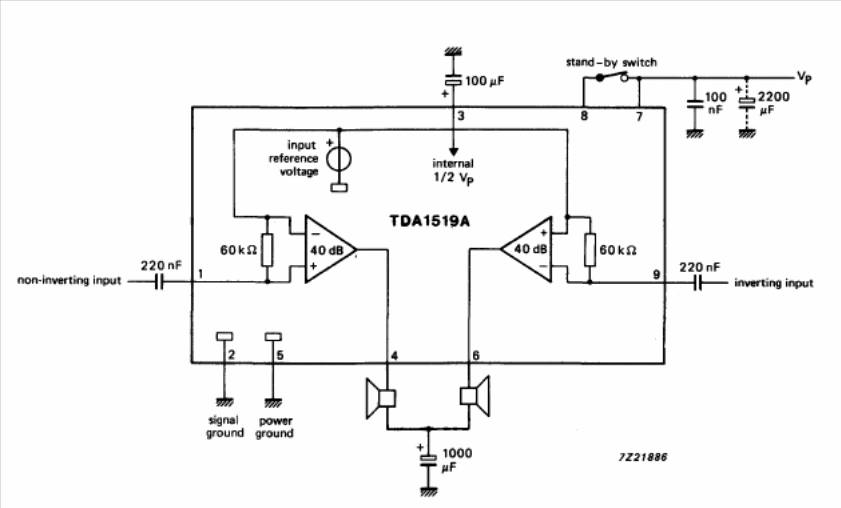

This amplifier for automotive use is from the Philips Databook of 1990. The integrated circuit must have a good heat radiator and the characteristics are given in the table below the diagram.
| Clique na imagem para ampliar |
10 W Amplifier per Channel TDA1519A (CB15382E)
