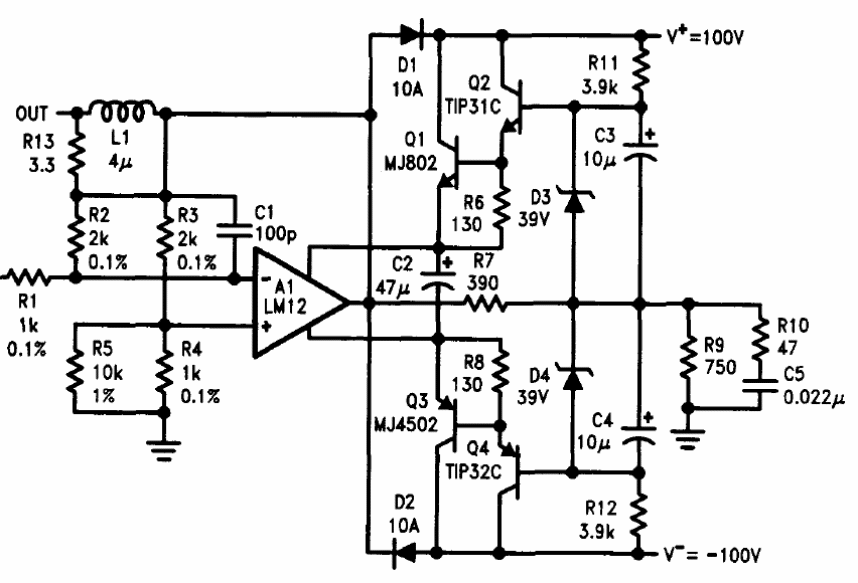

The amplifier presented is based on the National Semiconductor LM12 and high-power MJ transistors. The components mentioned are not easy to obtain. The circuit is from the 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |
90 V x 10 A Output Amplifier LM12 (CB14392E)
- Details
- Written by: Newton C. Braga
