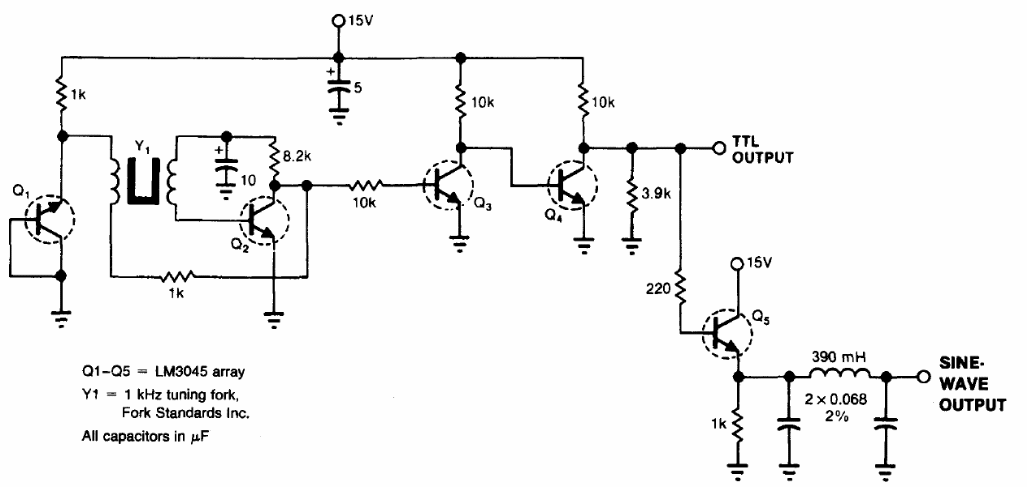

The circuit presented is based on a mechanical tuning fork. The circuit is suggested by National Semiconductor in its 1994 Linear Applications Handbook. Transistors can be discrete instead of the array suggested by National.
