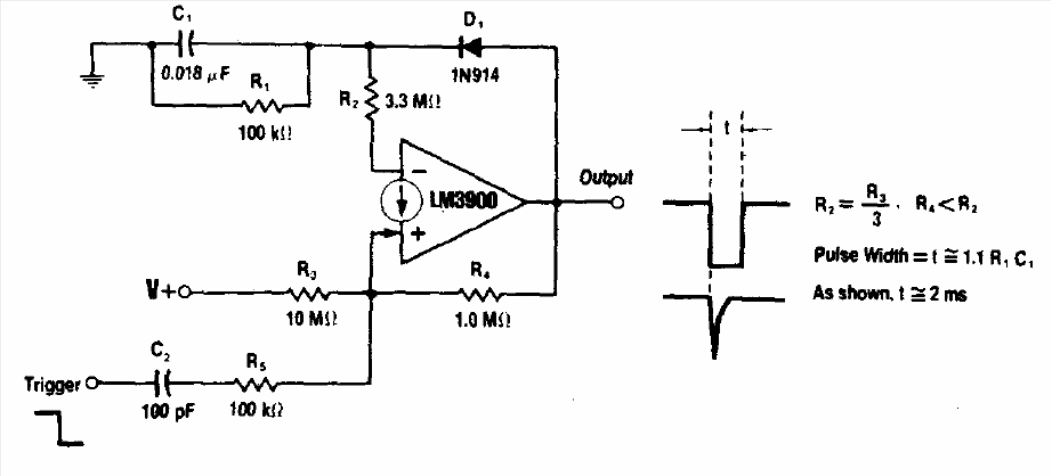

The circuit shown is from a 1974 integrated circuit manual. In it we have the monostable configuration of an LM3900 transconductance operational with time diagrams and formulas for the components. The power supply must be symmetrical.
