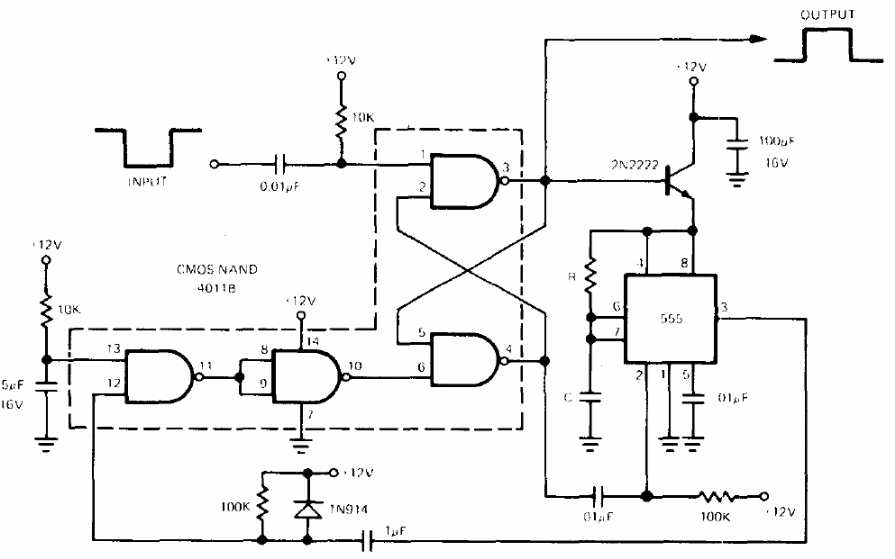

The consumption of this circuit is only 50 uA in the standby condition and 4.5 mA when supplying a pulse at the output. The circuit is from a technical documentation from Signetics from 1977. The time constant is 1.1 x R x C. The circuit can be used as a shield for microcontrollers.
