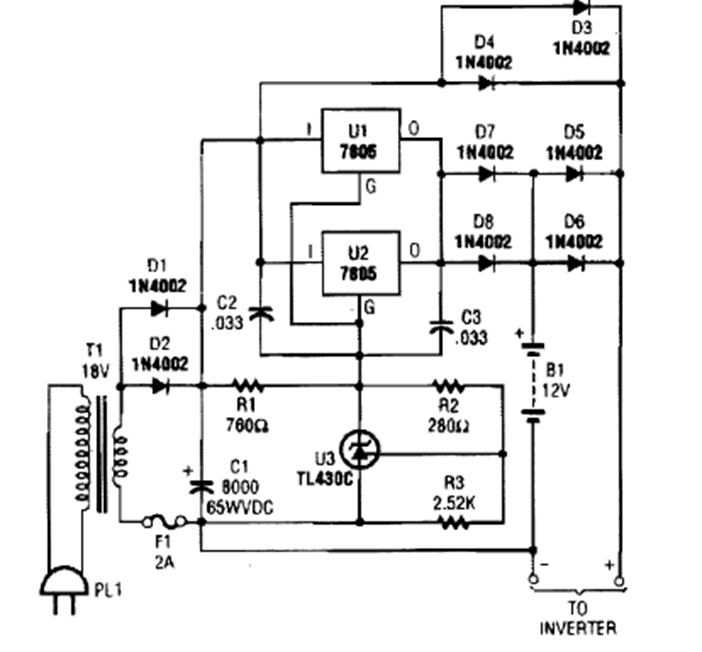

Lead Acid Battery Charger (CB26301E)

This power charger was found in a 1990s issue of Popular Electronics. Integrated circuits must be equipped with a heat sink.
