Gain 100 Amplifier (CB14023E)

Details
Written by: Newton C. Braga

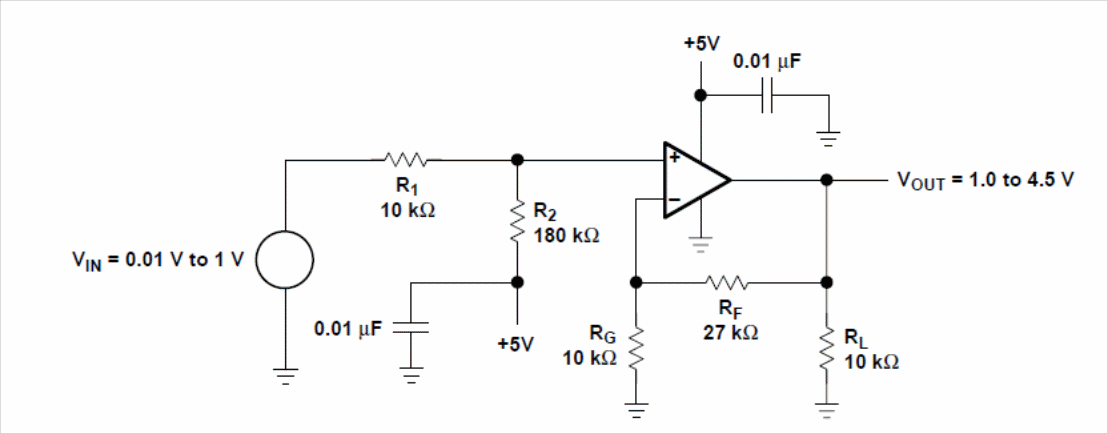

This circuit is from the Texas Instruments operating amplifier manual. Any operational can be used and the font need not be symmetrical. Rf and Rg determine the gain of the circuit.




| Clique na imagem para ampliar |
