Constant Volume Amplifier 741 (CB13686E)

Details
Written by: Newton C. Braga

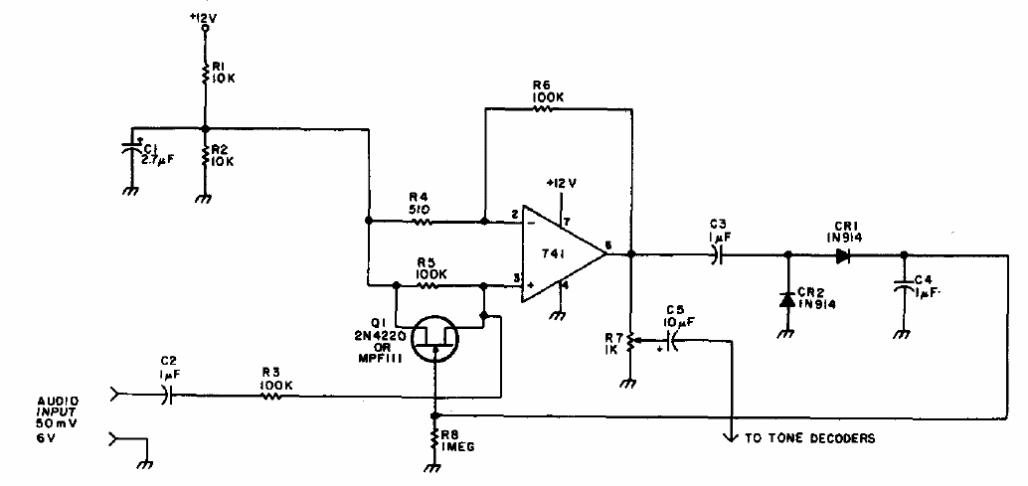

We found this circuit in a 1976 documentation. The FET can be BF245 or MPF102 and the power supply need not be symmetrical. The FET in the feedback acts as an automatic gain control.
