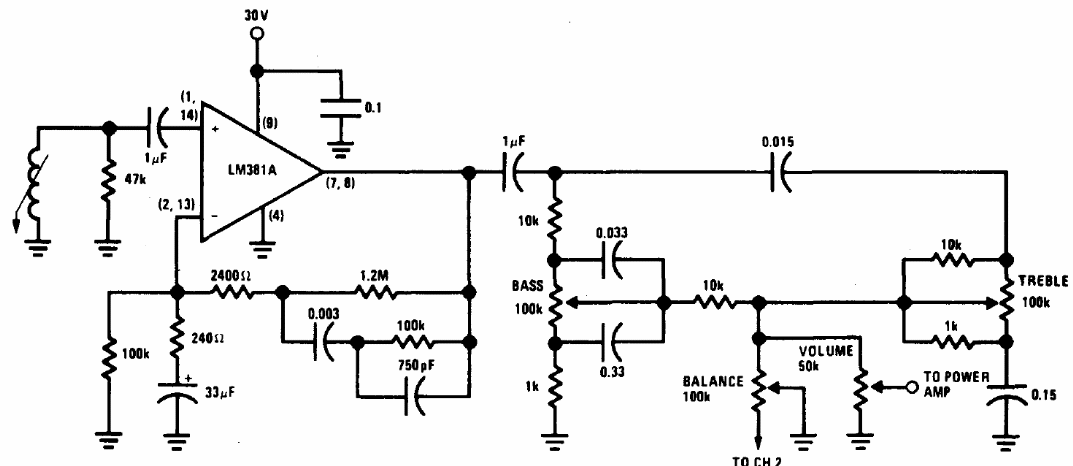

We found this circuit in the Audio Handbook of the National Semiconductor of 1977. The circuit is used to recover vinyl media for recording on other media.
| Clique na imagem para ampliar |
Phonocaptor Preamplifier with Tone Control (CB13925E)
- Details
- Written by: Newton C. Braga
