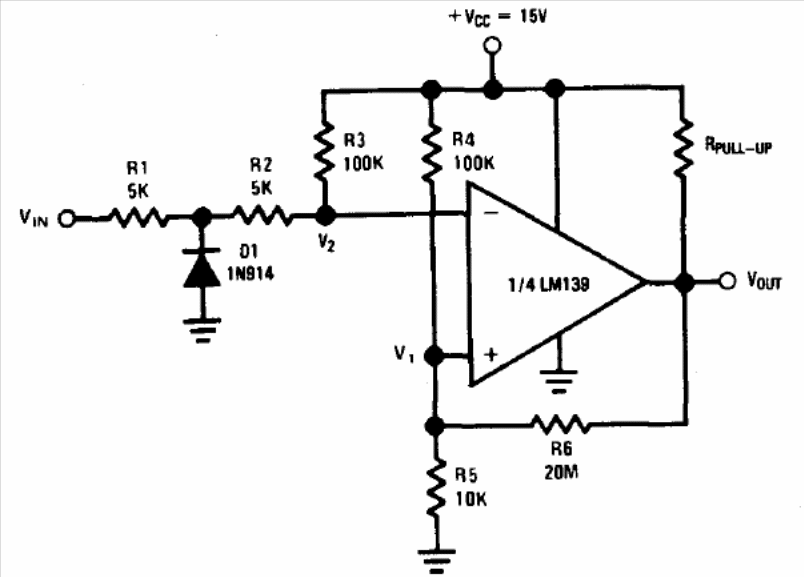

Zero Crossing Detector LM139 (CB14229E)

We found this circuit in the 1994 National Semiconductor Linear Applications Handbook. The circuit does not need a symmetrical source.

| Clique na imagem para ampliar |
