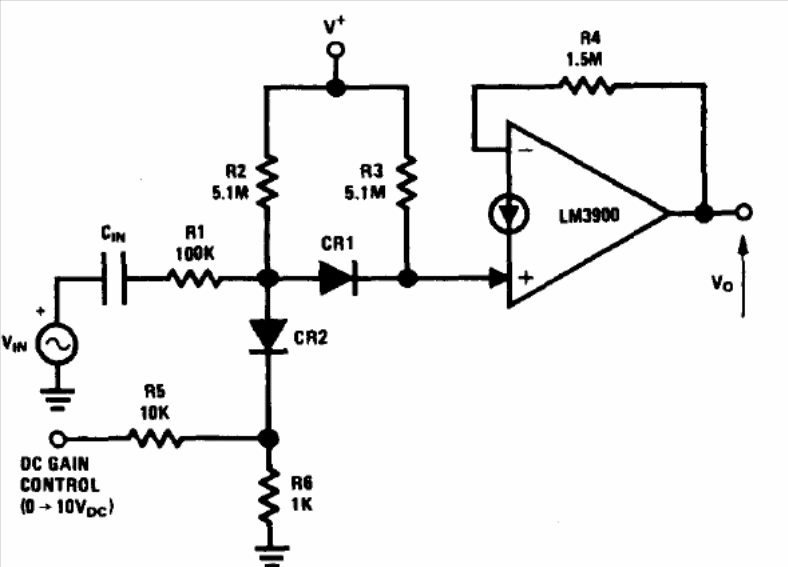

The circuit below for the LM3900 transconductance amplifier was suggested by National Semiconductor in its 1994 Linear Applications Handbook. The circuit uses a symmetrical source, and the diodes are for general use.
