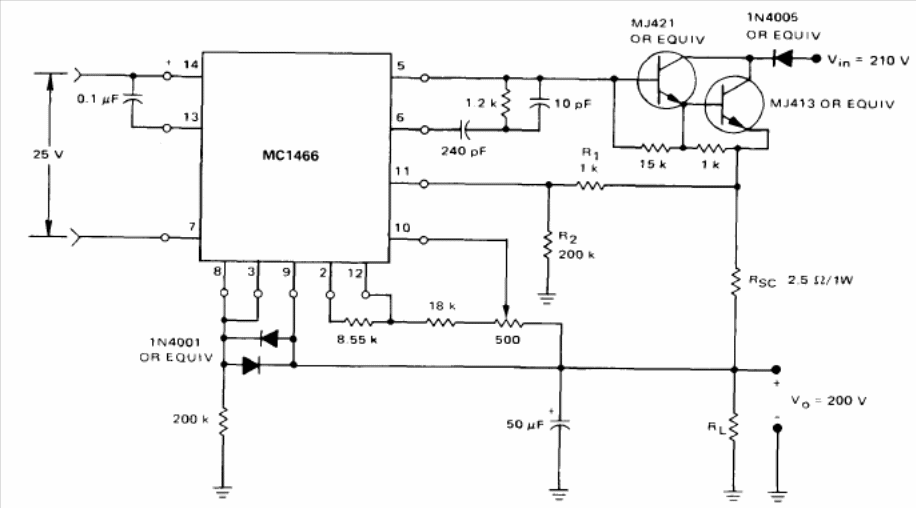

200 V x 500 mA Power Supply MC1466 (CB14522E)

Details
Written by: Newton C. Braga



This circuit is from Motorola's Linear Databook from 1990. The integrated circuit and transistors are uncommon, but the circuit can be assembled with equivalents.
