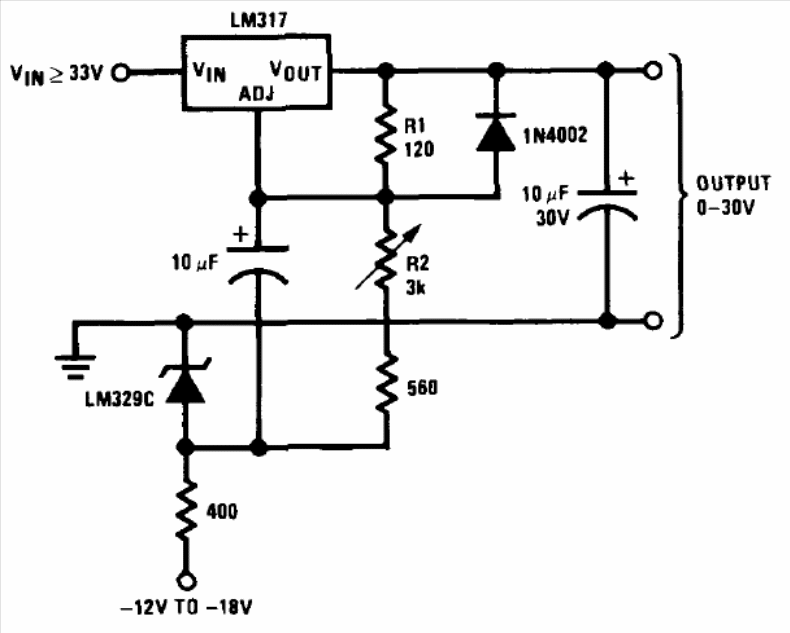

0 to 30 V x 1.5 A Regulator LM317 (CB14302E)

This circuit was suggested by National Semiconductor in its 1994 Linear Applications Handbook. The integrated circuit must have a heat radiator.

| Clique na imagem para ampliar |
