Current to Voltage Converter (CB14343E)

Details
Written by: Newton C. Braga

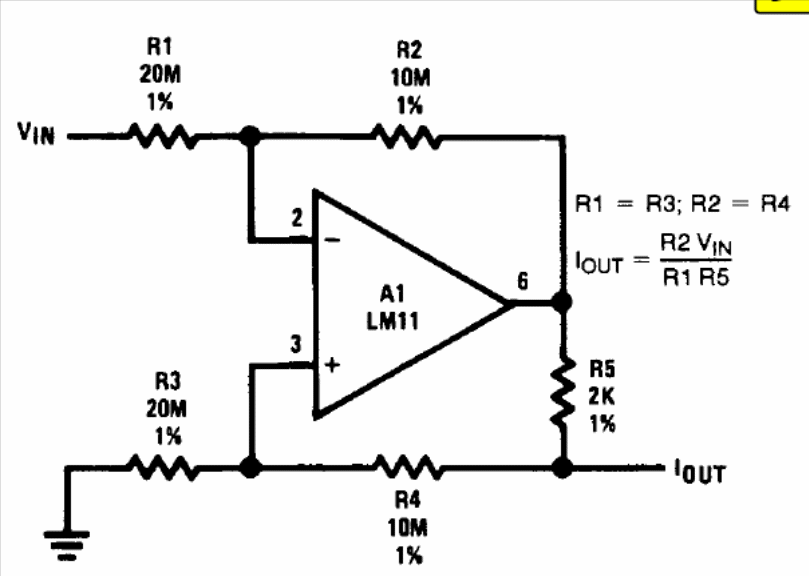

This circuit is from National Semiconductor using an LM11, which is uncommon nowadays. The circuit can be implemented with other operational ones.
