This circuit is from a 1976 Motorola CMOS manual. It can be implemented with modern Darlingtons like those in the Texas TIP series. The load current depends only on the Darlington transistor.
| Clique na imagem para ampliar |

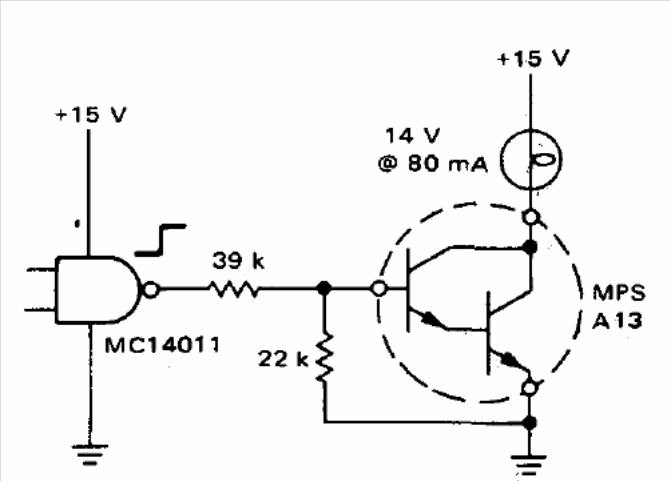

CMOS Driver (CB13776E)
- Details
- Written by: Newton C. Braga
