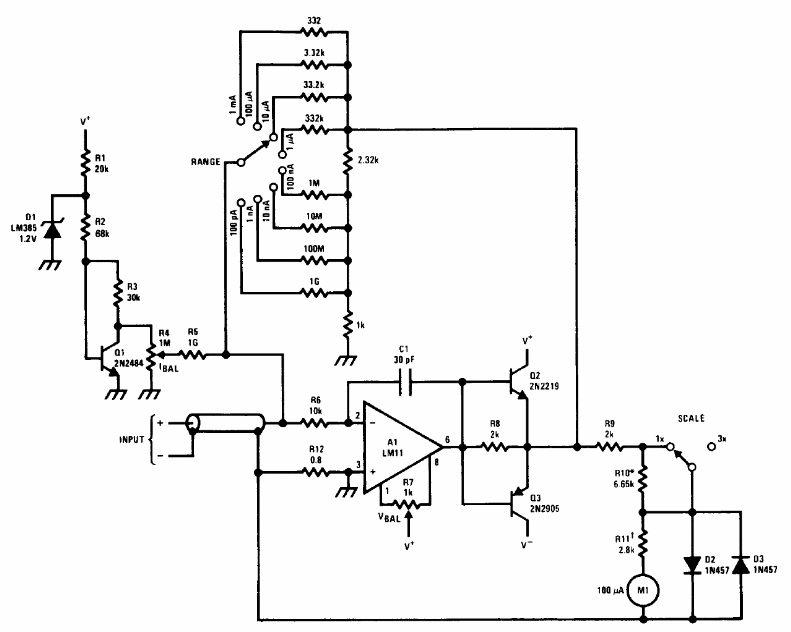

The circuit shown uses an operational amplifier that is uncommon nowadays. The circuit was obtained in a 1994 Linear Applications Handbook by National Semiconductor.
| Clique na imagem para ampliar |
Ammeter with the LM11 (CB14342E)
- Details
- Written by: Newton C. Braga
