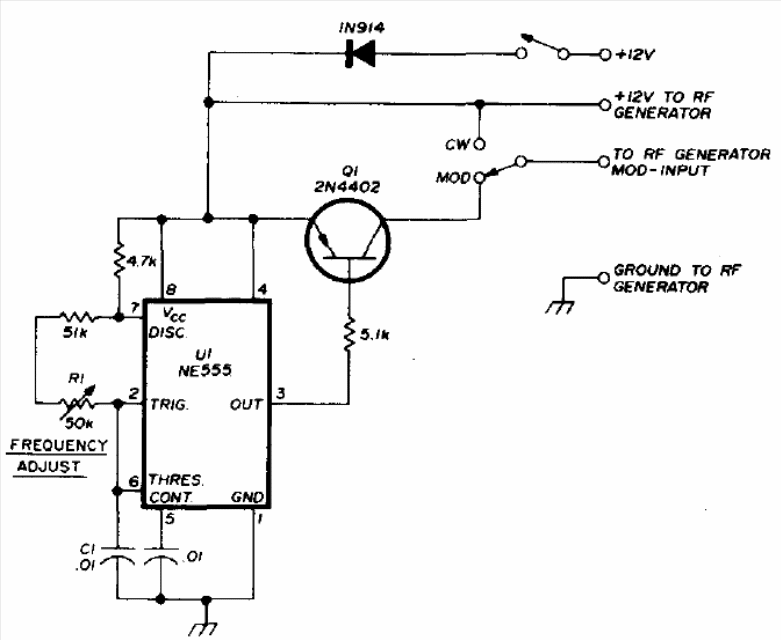

This circuit is from a 1976 amateur radio manual. The transistor can be the BD136 and the frequency adjustment is done in a potentiometer. The supply can be done with voltages from 6 to 15 V.
| Clique na imagem para ampliar |
1 kHz VHF Modulator (CB13665E)
- Details
- Written by: Newton C. Braga
