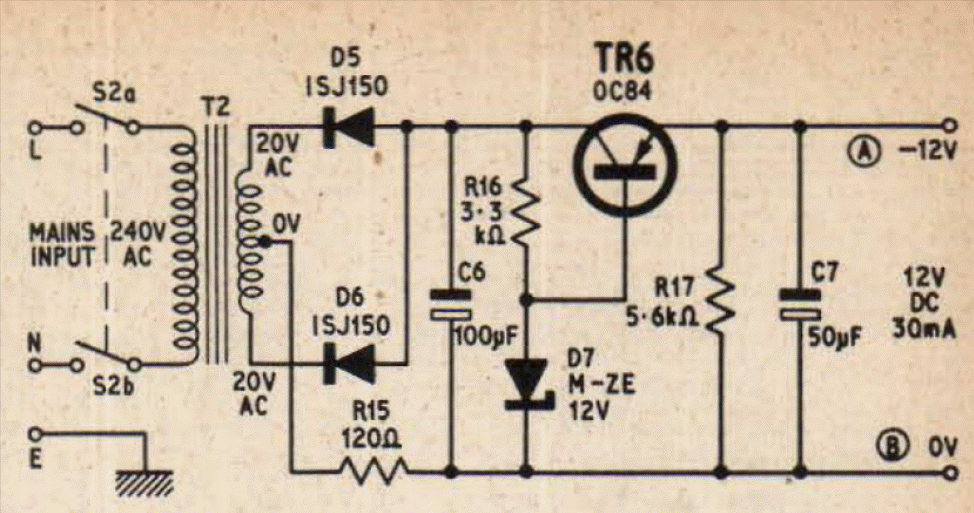

This small source was found in an English documentation from 1970. The diodes can be 1N4002 for rectification and the zener of 400 mW. The transistor can be a BD135 for a modern version and the transformer must have a secondary of 50 mA or slightly more.
