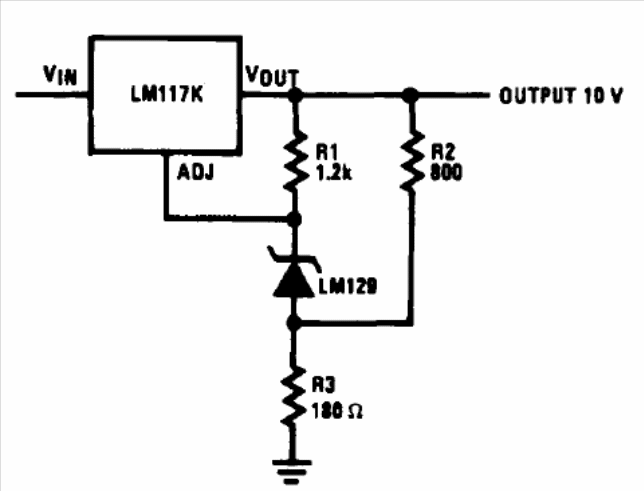

The circuit presented was suggested by National Semiconductor in its Linear Applications Handbook. The circuit also applies to other 3-terminal regulators.
| Clique na imagem para ampliar |
High Stability 10V Regulator B14300E (CB14300E)
- Details
- Written by: Newton C. Braga
