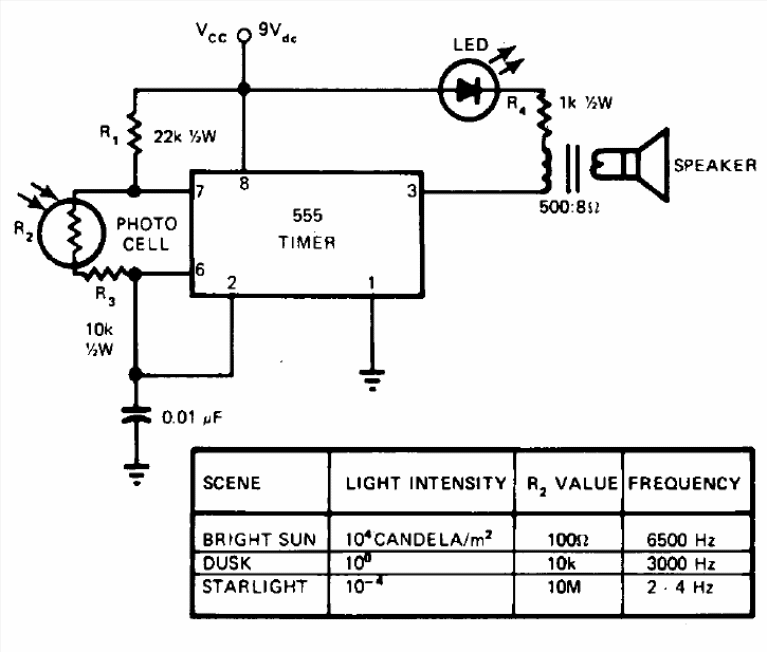

This circuit provides a signal of higher frequency the greater the intensity of the light incident on the LDR. The transformer is the type found on old transistor radios, but a piezoelectric transducer without the LED can be used instead. The circuit is from a documentation from the 70s.
