Voltage Controlled Oscillator (CB14355E)

Details
Written by: Newton C. Braga

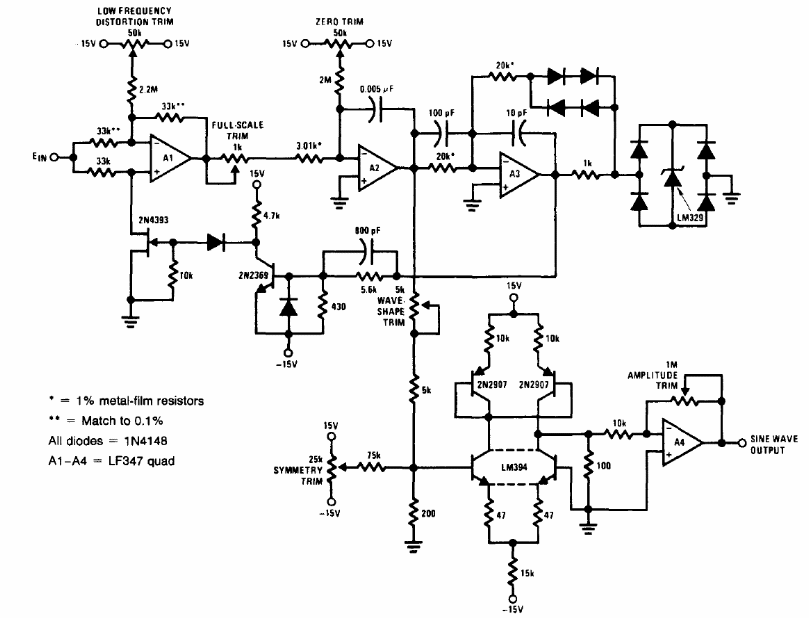

This circuit was found in the Linear Applications Handbook of the National Semiconductor of 1994. Some of the components used are not easy to obtain, but equivalents can be used.




| Clique na imagem para ampliar |
