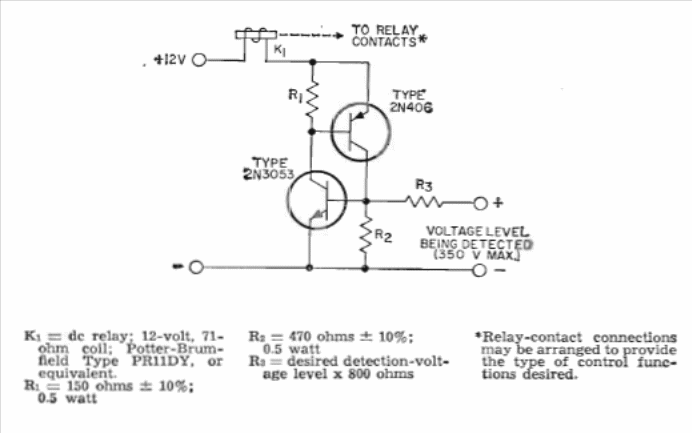

The circuit shown consists of a power stage for relay excitation. 2N3053 can be a BD135 and 2N406 can be replaced with a BD136. R3 depends on the trigger voltage.
| Clique na imagem para ampliar |
Power Relay (CB14815E)
- Details
- Written by: Newton C. Braga
