Video Modulator (CB14572E)

Details
Written by: Newton C. Braga

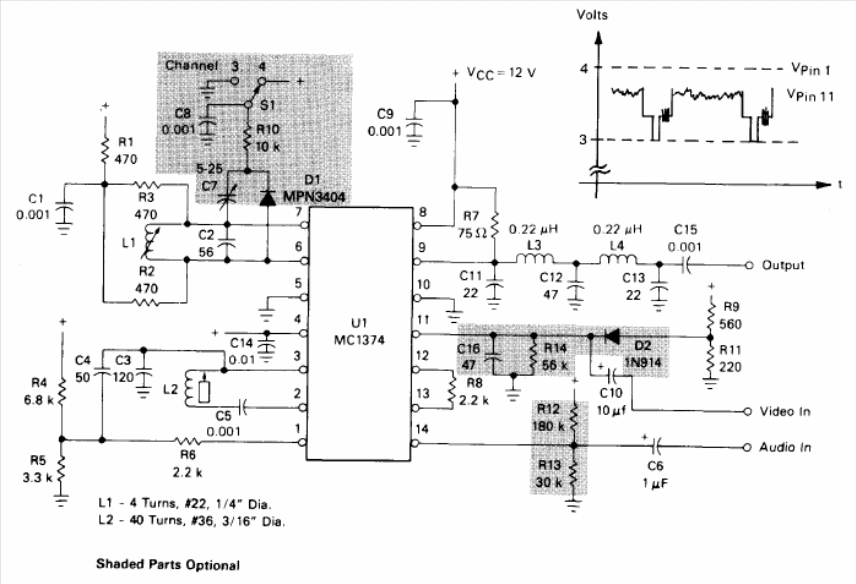

The circuit shown is from Motorola's 1990 Linear Databook. Shaded components are optional. The characteristics of the coils are given next to the diagram.




| Clique na imagem para ampliar |
