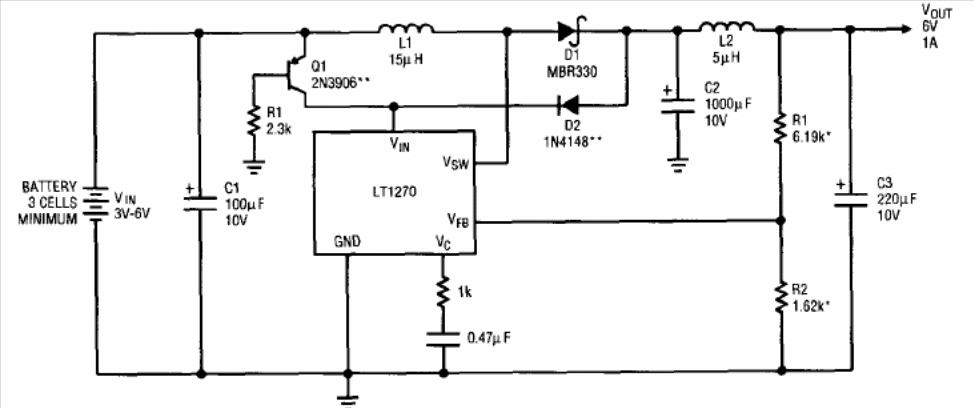

This circuit is from LinearTechnology Applications of 1997. The circuit uses components of the time used to raise the voltage of a battery from 3 to 6 V.
| Clique na imagem para ampliar |
6V x 1 A Boost Converter (CB14614E)
- Details
- Written by: Newton C. Braga
