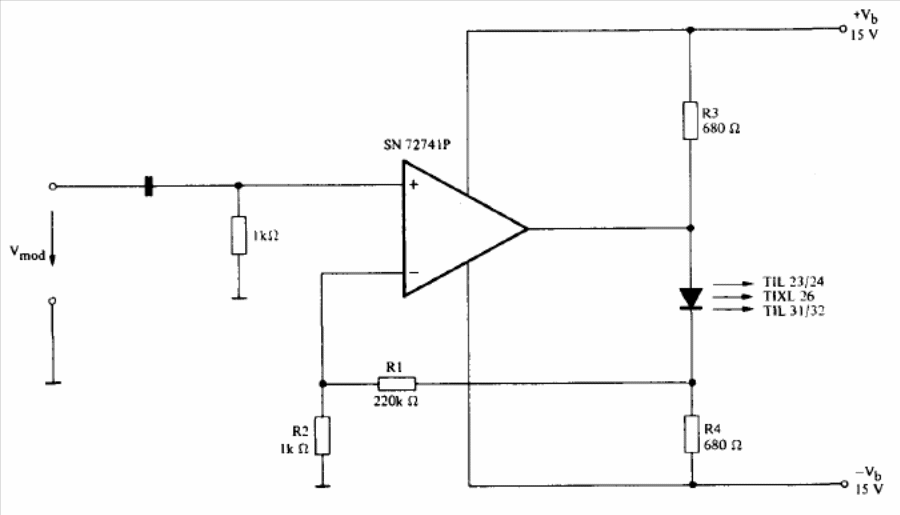

The circuit shown is from Texas Instruments optoelectronics documentation. The input signal is audio and equivalent LEDs can be used. Other operational amplifiers can also be used.
| Clique na imagem para ampliar |
Infrared Audio Link 741 (CB14677E)
- Details
- Written by: Newton C. Braga
