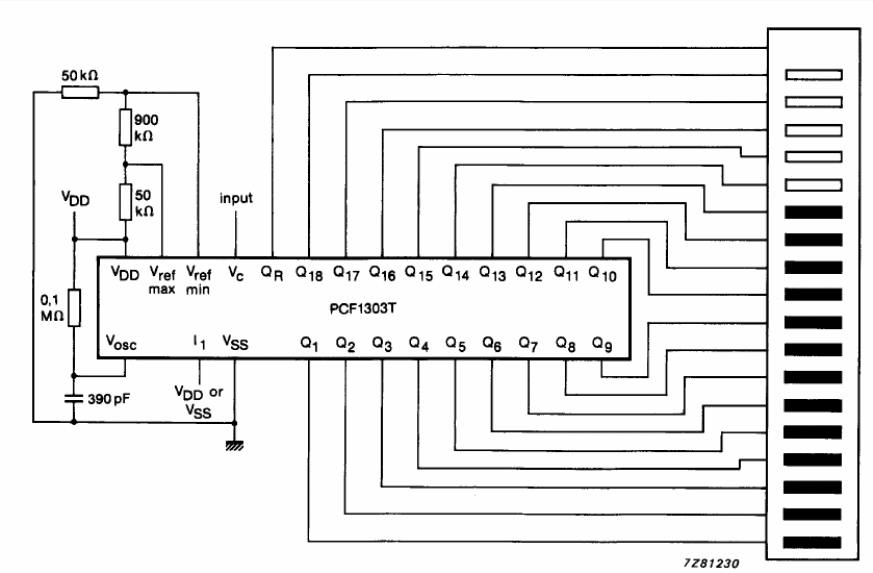

Bargraph PCF1303 (CB14719E)

Details
Written by: Newton C. Braga



The integrated circuit used is uncommon today. The circuit was obtained in the Philips integrated circuits manual of 1990. The reference voltage-range is from 0.5 to 9.0 V.
