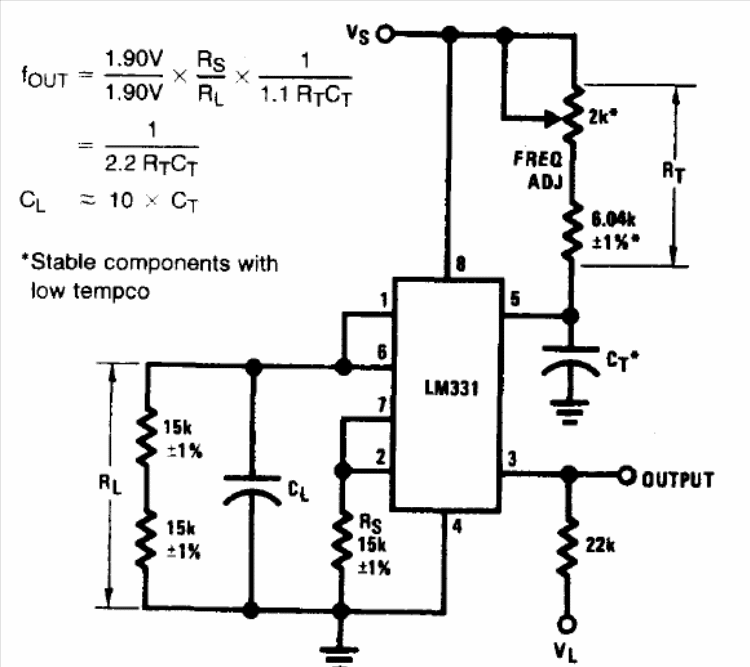

In the figure we have the way to use an LM331 as a stable voltage-adjusted oscillator. The formulas next to the diagram make it possible to calculate the generated frequency. The circuit is from National Semiconductor's Linear Applications Handbook.
