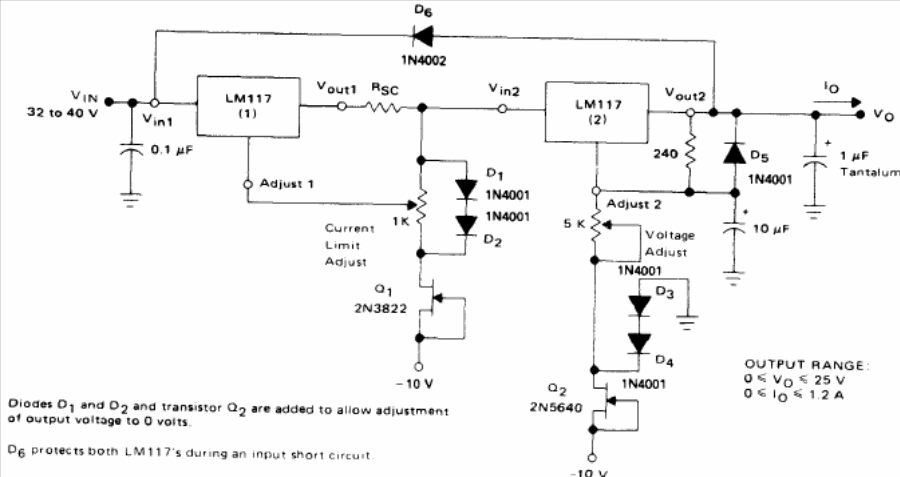

The LM117 (217 and 317) provides 1.2 A with output up to 25 V and is manufactured by several semiconductor industries. The circuit shown is from Motorola's 1990 Linear Databook, serving as an excellent quality laboratory source. The circuit has current adjustment.
