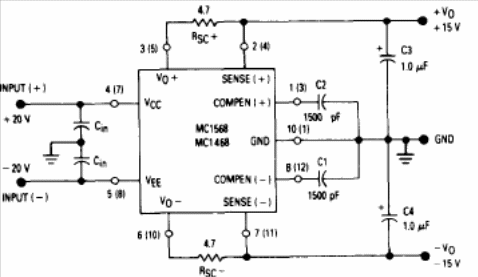

The integrated circuit used in this configuration is unusual. It is a symmetric source regulator with only one integrated, suggested by the Motorola Linear Databook of 1990.
Symmetric Regulator 15 V x 50 mA MC1568 (CB14523E)
- Details
- Written by: Newton C. Braga
