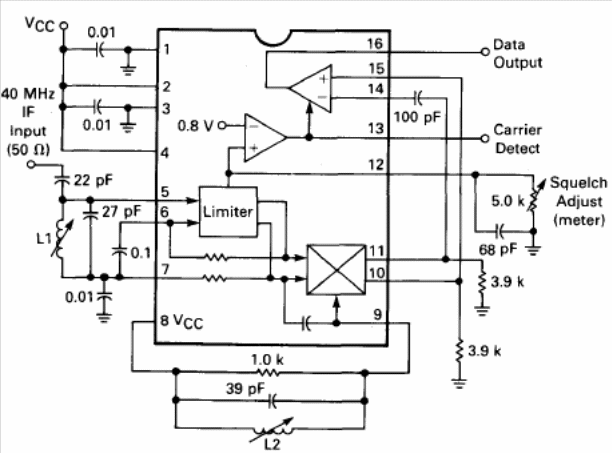

We found this circuit in Motorola's 1990 Linear Databook. The component used is unusual. The receiver is intended for frequencies up to 40 MHz. The maximum supply voltage is 15 V.
Broadband FM FSK Receiver MC13055 (CB14569E)
- Details
- Written by: Newton C. Braga
