Bidirectional Video Bus (CB14618E)

Details
Written by: Newton C. Braga

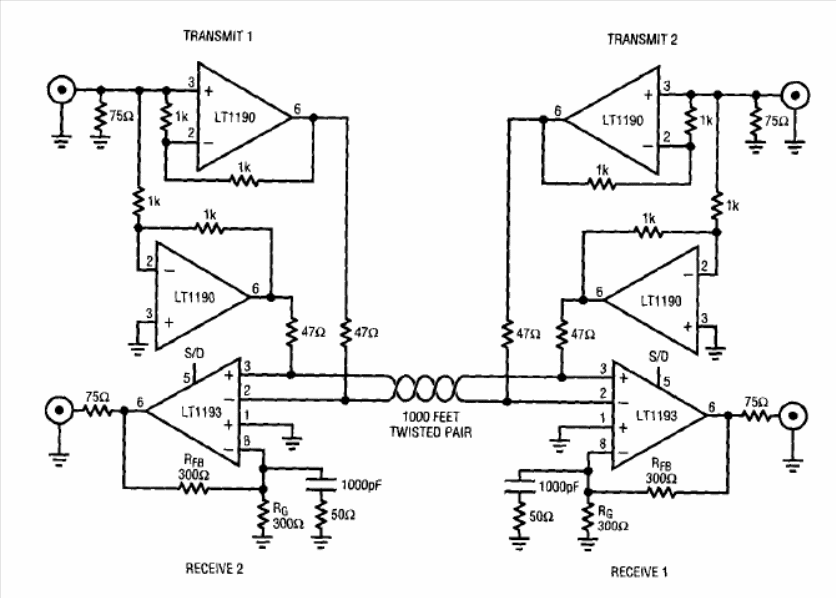

This circuit was found in Linear Technology Applications of 1997, using components of the time. The circuit transmits video signals bidirectionally over twisted pair.
